Sistema de Segurança do Caminhão

Sistema de Segurança do Caminhão

Modelo:4013-28
Imaging Device: 1.3MP 1/3” CMOS
Lens Type: 2.8mm fixed lens, F1.6
Video Compression:H.264
 0 (0)
Descrição
Specification
DVR Specification
Operating System Embedded LINUX
Pentaplex Simultaneous View, Record, Playback, Backup, and Remote Monitoring
Number of Channels 4
Inputs/Outputs
Video IN 4 composite video 1 Vpp 75 ohm
Video OUT HDM
USB Port 2 at the back (one USB 3.0)
Video Output Resolution MAX 1080p
Display
Live Display 1, 2x2
Live Display Speed 120 NTSC, 100 PAL
Monitor 7inch LCD
Touch Screen Yes
OSD ON/OFF
System Navigation USB Mouse
Motion Area Setting Adjustable grid (22x18)
Sensitivity levels 1-6
Firmware Upgrade via USB device
User Authority By user group
Recording
Video Compression H.264
Resolution 720P (1280x720)
Record Rate NTSC: 120FPS @ 780PPAL: 100FPS @ 780P
Record Resolution Setting Per camera for different resolutions
Recording Quality 6 Levels
Record Schedule By hour, by day, by recording mode, by motion, by channel
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback
Playback Channel 4
Playback Speed Variable Max 8x
Search By time & event
Storage & Archive
Storage Up to 1 HDD ( 2.5 inch SATA)
Maximum Capacity Up to 1 x 1TB
Backup Media USB flash drive, HDD, & Network
Backup File Format H.264 or AVI file
Storage & Archive
Supported OS Windows™, Mac OS
Remote Software GOLBONG Operation Software, CMS5
Instant Smart Phone & Tablet Support iPad®, iPhone®, Android™
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100–Base-TX, RJ-45
DVR General
Power Consumption 10 watts (No HDD Installed)
Supply Voltage 12V DC, 2A,
Camera
Imaging Device 1.3MP 1/3” CMOS
Effective Pixels 1280*960
Day / Night Auto (ICR) / Color / B/W
Min. Illumination 0.5lux (Color); 0.05lux (B/W)
S/N Ratio >50dB
Field of View (H) 103°
Lens Type 2.8mm fixed lens, F1.6
IR Illumination Yes, 850nm
Video Output 1 composite video 1 Vpp 75 ohm
Video
Video Compression H.264
Resolution 720P (1280x960)
Aspect Ratio 0.672916666666667
Frame rates (Maximum) 1.3MP (1280*960)@ 25fps
Wide Dynamic Range Digital WDR
Backlight Compensation BLC / HLC / DWDR
Noise Reduction 3D
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Sistema de Segurança do Caminhão

Modelo:4013-28
Imaging Device: 1.3MP 1/3” CMOS
Lens Type: 2.8mm fixed lens, F1.6
Video Compression:H.264
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

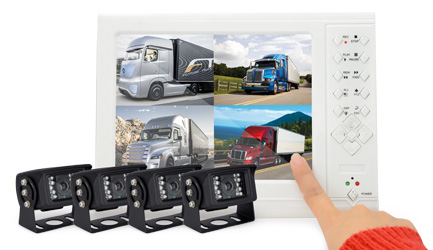

HD Image Detail

The 4013-28 camera system can deliver image detailed in 720p HD resolution with its 1/3 inch CMOS sensor.

7 Inch Touch Screen

The driver can easily enlarge the image by finger-touch on the screen.

Real-time video with zero delay

The driver can learn the situation at the rear of the vehicle during the driving.

Plug & play Setup

The install can complete the system with simple plug and play, no need to configure each of the camera front-end.

SSD storage support

The 4013-28 system can take 2.5 inch SSD harddrive and record footage.

Ultra Wide Angle View

The 4013-28 camera system can cover 103 degree wide area in front or rear of the vehicle.

Night vision

The 4013-28 camera system can capture clear image at night with its built-in infrared LEDs.
