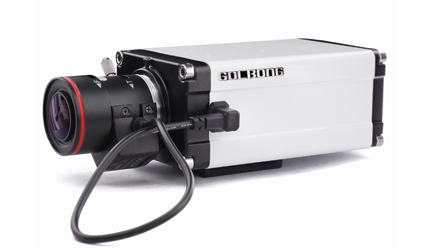

Câmera IP Profissional com 1-1.8 inch CMOS Super Low Lux 5MP

Câmera IP Profissional com 1-1.8 inch CMOS Super Low Lux 5MP

Modelo:2296
Sensor: 1/1.8" EXMOR CMOS
Pixel: 2592*1944
Lens: 3.6-16mm Manual Zoom
Frame: 30fps/NTSC
 0 (0)
Descrição
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 6.0 W (max)
Video
Sensor type 1/1.8 Type SONY Exmor CMOS Sensor
Sensor pixels 2592*1944
Sensitivity 0.01 lx
Main-stream Resolution 2592*1944 @25fps; 2048*1536@25fps
Sub-steam Resolution 4CIF@25fps; CIF@25fps
Video compression H.265/H.264 MP (Main Profile)
DWDR On/Off
3D DNR Yes
Lens
Lens type Varifocal 3.8 to 16 mm, 4K, Fixed Iris F1.4(10*40mm is optional)
Field of View H: 106°- 27.8°
Lens mount CS mounted
Day & Night Auto ICR Switch
Connection
Analog video out N/A
Alarm input (optional) 1 alarm in
Alarm out (optional) 1 alarm out
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage (optional)
Memory card slot Supports up to 128 GB micro SD card (An SD card of Class 8 or higher is recommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless N/A
PoE IEEE 802.3af compliant
Mechanical
Dimensions 148*78*56mm (without lens)
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
IP Box VF 2.8 to 12mm lens 2296
* Local Storage function is optional
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Câmera IP Profissional com 1-1.8 inch CMOS Super Low Lux 5MP

Modelo:2296
Sensor: 1/1.8" EXMOR CMOS
Pixel: 2592*1944
Lens: 3.6-16mm Manual Zoom
Frame: 30fps/NTSC
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Industrial CMOS sensor

The 2296 camera can generate the ultra high resolution image with its 1/1.8 inch SONY EXMOR CMOS sensor.

Optimize field of view

Users can zoom in the 2296 camera remotely to get the best view of the interested area. Allocate all 5 megapixel to a specific area can make the image extremely clear.

Next Level Codec

The 2296 camera is able to deliver H.265 codec with 30% ~ 50% storage space saving on the NVR.

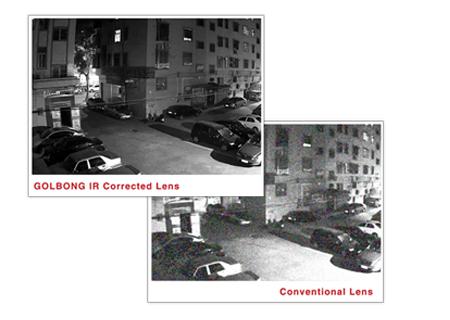

Night vision

The 2296 camera can capture clear image at night with its built-in infrared LEDs.

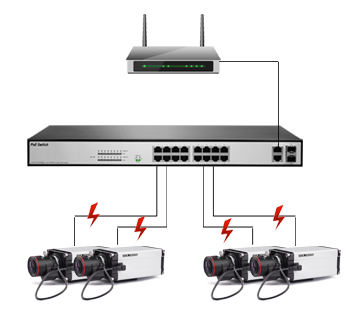

Simple setup

Users only need single cable to carry the power and network to the camera. The power will be separated from the network cable with POE function.

Efficient recording

Users can enable the motion detection to trigger footage recording when people walk in. They only need to review the motion footage to locate the person of interests. Pre-record capability makes sure the detail will not be missing.
