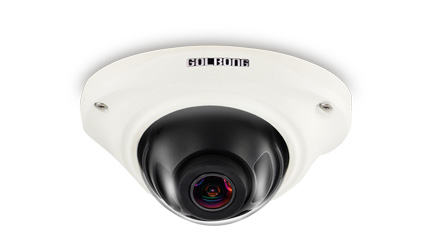

Câmera Dome com Super Grande Angular

Câmera Dome com Super Grande Angular

Modelo:2545
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080 @ 25fps
Lens: 1.85mm
 0 (0)
Descrição
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 4.5 W (max)
Video
Sensor type 1/2.8-inch SONY CMOS
Sensor pixels 1920x1080
Sensitivity 0.1 lx (IR off)
Main-stream Resolution 1920*1080 @25fps; 4CIF@25fps
Sub-steam Resolution 4CIF@25fps; CIF@25fps
Video compression H.264 MP (Main Profile)
DWDR On/Off
3D DNR Yes
Night vision
Infrared LEDs N/A
Lens
Lens type 1.85 mm
Field of View 145º
Lens mount Board mounted
Day & Night Auto ICR Switch (IR correction filter)
Connection
Alarm input (optional) 1 alarm in
Alarm out (optional) N/A
Audio (optional)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage (optional)
Memory card slot Supports up to 128 GB micro SD card (An SD card of Class 10 or higher is recommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless N/A
PoE IEEE 802.3af compliant
Mechanical
Dimensions Diameter: 120 mm Height: 54 mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
Ultra Wide angle IP Dome,1.85 mm lens 2545
* Local Storage function is optional
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Câmera Dome com Super Grande Angular

Modelo:2545
Sensor: 1/2.8" EXMOR CMOS
Pixel: 1920*1080 @ 25fps
Lens: 1.85mm
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Eye-level Setup

The user can install 2545 camera on the wall to an eye-evel position to capture the face detail.

HD image quality

The 2545 camera can deliver image detailed in 1080p HD resolution with 1/2.8 inch SONY EXMOR sensor.

Ultra wide angle view

The 2545 camera can deliver 145 degree ultra wide angle wiew its 1.85mm lens.

Efficient recording

Users can enable the motion detection to trigger footage recording when people walk in. They only need to review the motion footage to locate the person of interests. Pre-record capability makes sure the detail will not be missing.

Simple setup

Users only need single cable to carry the power and network to 2545 camera. The power will be separated from the network cable with POE function.
