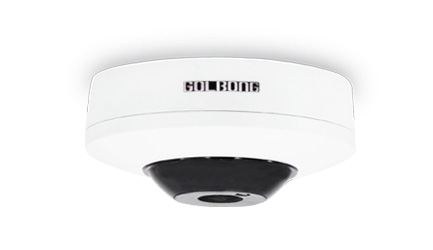

Câmera Panorâmica Infravermelho 2MP

Panoramic view

The 2546 camera can deliver 180 degree Panoramic View and 360 degree Surround View with its built-in dewarpped engine.

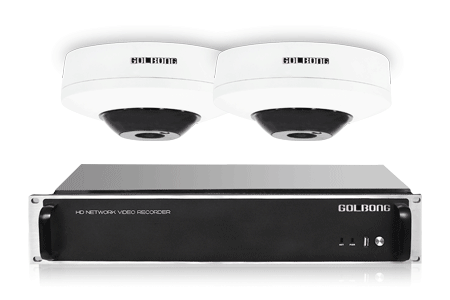

Working with regular NVR

The 2546 camera can work with regular NVR to record the dewarpped image.

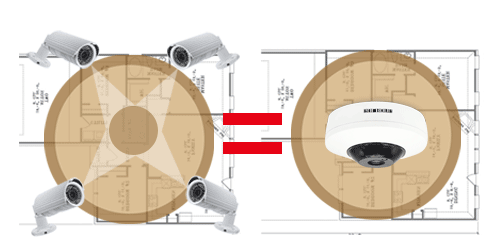

Flexible Coverage

The user can deploy single 2546 camera to cover multiple surveillance points.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. The Users can access the camera remotely to retrieve the footage without taking off the memory card.

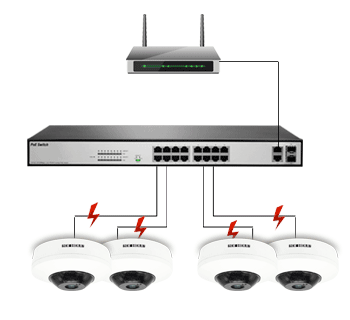

Simple setup

Users only need single cable to carry the power and network to the camera. The power will be separated from the network cable with POE function.

Power
Input voltage	+12 VDC or Power-over-Ethernet
Power consumption	6 W (max)
Video
Sensor type	1/3-inch CMOS
Sensor pixels	2048x1536
Sensitivity	0.5 lx (IR off) 0 lx (IR on)
Main-stream Resolution	1920*1080 @20fps (Dewarpped);
Sub-steam Resolution	4CIF@20fps; CIF@25fps
Video compression	H.264 MP (Main Profile)
DWDR	On/Off
3D DNR	Yes
Night vision
Distance	5 m
LED	3 LED high efficiency array, 850 nm
Lens
Lens type	1.42 mm
Field of View	360º or 180º
Lens mount	Board mounted
Day & Night	Auto ICR Switch (IR correction filter)
Connection
Alarm input (optional)	1 alarm in
Alarm out (optional)	N/A
Audio (optional)
Audio input	RCA jack connector
Audio output	RCA jack connector
Audio communication	Two-way, full duplex
Audio compression	G.711 (live and recording)
Local Storage
Memory card slot	Supports up to 128 GB micro SD card (An SD card of Class 10 or higher is recommended for HD recording)
Recording	Continuous recording, Motion/schedule recording
Software Control
Unit configuration	Via web browser or PC surveillance software
Network
Protocols	HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet	10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless	N/A
PoE	IEEE 802.3af compliant
Mechanical
Dimensions	Diameter: 120 mm Height: 54 mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (non condensing)
Ordering Information
Fishsye IP Dome,1.42 mm lens	2546
