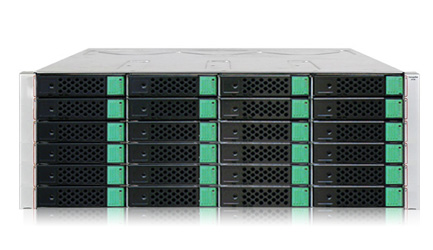

24 Units Network Storage Device
Model:5804-43Harddrive: 1 Units x 6TB
Standard: H.264
Local display: HDMI/VGA
-
Overview
-
Specifications
-
Document
-
Reviews
-
Question & Answer
Auto Register Connecting
Golbong IP cameras, NVRs, and DVRs on multi-sites can register to this server without static IP address.
Reliable Architecture
The 5804-43 can keep working 24/7 with its embedded linux system and hardware RAID.
Response to the IPC alarm
The 5804-43 can respsone the alarm input from Golbong ip cameras and generate immediately video pop up on the screen.
Mass Storage
The 5804-43 is capable of taking 24 unit hard disk with144 TB space which can keep recording all channels more than two week in 1080p resolution.
Monitor devices' status
The operator can read the status of each IP devices on multi-sites, receiving alarm message from motion detection, alarm I/O.
Authorized Users
The operator can create umlimited accounts and assign the specific cameras for each users to access remotely.
Complete open
The users can integrate 3025-83 NVR with 3rd party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.
| Rated Voltage and Power | |
| Rated Voltage and Power | 110–240 VAC; 50/60 Hz; 1.5A |
| External power adapterDC output | DC12V 4A |
| Video | |
| Video Standard | PAL or NTSC |
| Compression | H.264 |
| Outputs | VGA/HDMI |
| Inputs | 16 composite video 1 Vpp 75 ohm automatic termination |
| Audio | |
| Inputs | 1 line in , mono RCA,1 Vpp, 10 kohm |
| Output | 1 line out, mono RCA, 1 Vpp, 10 kohm |
| Compression | G.711 |
| Sampling rate | 8 kHz per channel |
| Monitors | |
| VGA/HDMI | Live, playback, menus |
| Live Resolution | SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480 |
| Display Modes | |
| Screen | Full, full sequence, quad, multi-screen (live and playback), event call-up (live) |
| Frame rate PAL/NTSC | 25/30 IPS per channel (real time) |
| Multi-screen mode 4 channels | 1, 2x2, 3x3, 4x4 |
| Digital Zoom | Yes |
| Display languages | Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
| Alarm Handling | |
| Inputs | 4 input |
| Outputs | 1 output |
| Events | Alarm input, Motion detect, Video Blind, Video Loss, |
| Remote notification | Via Control Center software, email, Push message |
| Malfunction relay | Disk space low, IP conflict, Disk failures |
| Connections | |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex, RJ45 |
| USB | Two USB 2.0 ports |
| Network | |
| Protocols | HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP |
| Cameras | 16*4M@8fps(AHD)；16*3M@10fps(AHD)；16*1080P @15fps (5 in 1) |
| Storage | |
| Internal HDD | 2 unit |
| Redundancy | N/A |
| Exporting | |
| USB | Flash memory |
| Network | Golbong Software |
| Security | |
| Password protection | Multi-level |
| Recording | |
| Overwrite modes | Continuous, overwrite |
| Playback | |
| Decoding Capacity | 8-CH |
| Playback function | Fast forward/reverse, frame forward /reverse,freeze |
| Digital Zoom | yes |
| Search mode | Date/time, Event (motion, input) |
| Mechanical | |
| Dimensions (W x D x H)(excluding cabling) | 255(L) x 44(H) x 236(W) |
| Weight | TBA |
| Environmental | |
| Operating temperature | +5 °C to +45 °C (+41 °F to +113 °F) |
| Storage temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative humidity | Operating: <93 % non-condensing Storage: <95 % non-condensing |
| Ordering Information | |
| Network Storage Device | 5804-43 |
-
