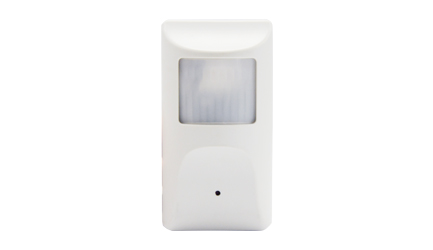

Câmera Camuflada de Sensor de Presença AHD 1.3MP

Câmera Camuflada de Sensor de Presença AHD 1.3MP

Modelo:2643-83
Sensor: 1/3" EXMOR CMOS
Pixel: 1280*960 @30fps
Lens: 3.7mm pinhole lens
Day/Night: Auto IRCut filter
 0 (0)
Descrição
Specification
Power
Input voltage +12 VDC
Power consumption 6.0 W (max)
Video
Sensor type 1/3 Type SONY Exmor CMOS Sensor
Sensor pixels 1280x960
Sensitivity 1.0 lx (IR off) 0 lx (IR on)
Resolution 1280x960
Video Output 1 composite video 1 Vpp 75 ohm automatic termination
Day & Night Auto ICR Switch
Shutter Auto (1/50(1/60)s to 1/10,000s)
AGC Auto
Night vision
LED N/A
Lens
Lens type 3.7mm
Field of View H: 76°
Lens mount Board mounted
Day & Night Auto
Mechanical
Dimensions 130*70*50mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
AHD Mini PIR Camera 2643-83
Documents
Comentário
Compartilhe suas ideias com outros clientes
Escreva Avaliação
0 Comentário e Avaliação de clientes
(0)
(0)
(0)
(0)
(0)
Ordenado por:
Ordenado por:
Pergunta e resposta
PERGUNTA E RESPOSTA
Conte-nos as suas perguntas.Nós responderemos em breve.
TIRE SUAS DÚVIDAS
Ordenado por:
Ordenado por:

Câmera Camuflada de Sensor de Presença AHD 1.3MP

Modelo:2643-83
Sensor: 1/3" EXMOR CMOS
Pixel: 1280*960 @30fps
Lens: 3.7mm pinhole lens
Day/Night: Auto IRCut filter
  • Descrição
  • Especificações
  • Documento
  • Comentário
  • Pergunta e resposta

Covert design

The users can have advances for their investigation by setting up a 2643-83 AHD PIR camera. Hidden inside the PIR housing and invisible infrared make the camera undetectable.

HD Image Detail

The 2643-83 AHD PIR camera can provide image detailed in 1.3mp HD resolution with its 1/3 inch EXMOR CMOS sensor.

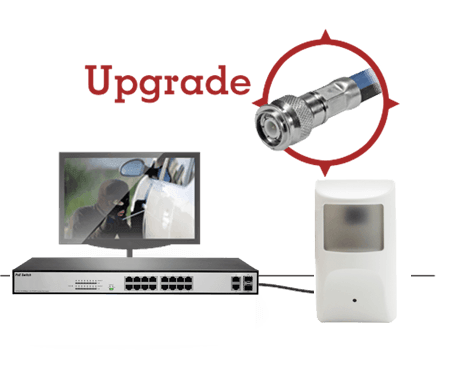

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 2643-83 AHD PIR camera.

Night vision

The 2643-83 AHD PIR camera can capture clear image at night with its built-in IR cut filter and infrared LEDs.
