Mini Câmera Dome AHD 2MP

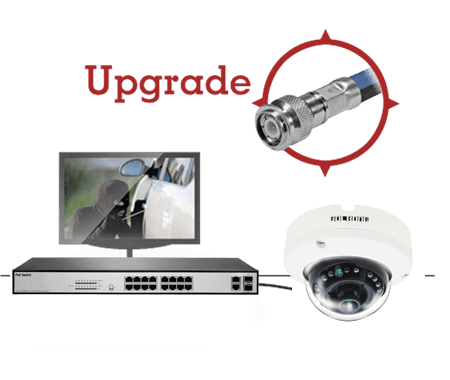

Re-use the coxial cable

The user can re-use existed coaxil cable to ugprade the analog system to HD CCTV with 3433-29 camera.

HD Image Detail

The 3433-29 camera can provide image detailed in 2MP HD resolution with its 1/2.8 inch EXMOR CMOS sensor.

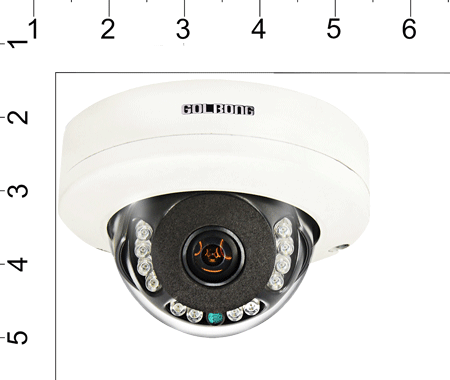

Discreet design

The discreet design make the camera easy to blend into business environment. The customer will more feel comfortable without seeing the camera shooting on them.

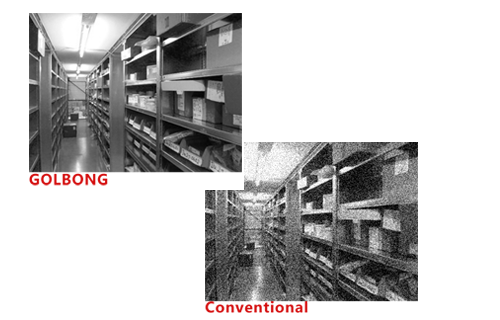

Night vision

The 3433-29 camera can capture clear image at night with its built-in infrared LEDs.

Ultra Wide Angle View

Users can deploy 3433-29 camera to cover wide area with activities monitoring.

Power
Input voltage	+12 VDC
Power consumption	6 W (max)
Video
Sensor type	1/2.8 Type SONY Exmor CMOS Sensor
Sensor pixels	1920x1080
Sensitivity	0.2 lx (IR off) 0 lx (IR on)
Resolution	1920x1080
Video Output	1 composite video 1 Vpp 75 ohm automatic termination
Day & Night	photocells control
Shutter	Auto (1/50(1/60)s to 1/10,000s)
AGC	Auto
Night vision
Distance	8 m
LED	12 LED high efficiency array, 850 nm
Lens
Lens type	2.8mm
Field of View	H: 92°
Lens mount	Board mounted
Day & Night	Auto ICR Switch
Mechanical
Dimensions	Diameter: 98 mm Height: 63mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (non condensing)
Ordering Information
1080p Coaxial Analog HD Dome Camera	3433-29
