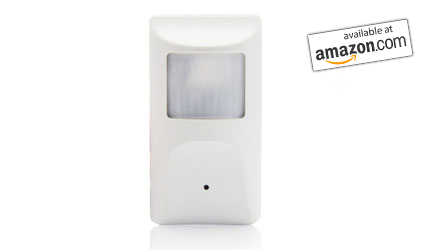

4MP IP Covert PIR Camera

4MP IP Covert PIR Camera

Model:2643-51
Sensor: 1/3 Type CMOS Sensor
Pixel: 2592*1520@25fps
Lens: 3.7mm pinhole lens
Day/Night: Auto ICR Switch
 0 (0)
Overview
Specification
Power
Input voltage +12 VDC or Power-over-Ethernet
Power consumption 6.0 W (max)
Video
Sensor type 1/3 Type CMOS Sensor
Sensor pixels 2592*1520
Sensitivity 1.0 lx (IR off) 0 lx (IR on)
Main-stream Resolution 2592*1520@25fps; 1920*1080@25fps
Sub-steam Resolution 4CIF@15fps
Video compression H.264,H.264+,H.265 (Main Profile)
DWDR ON/OFF
3D DNR Yes
Night vision
IR cut filter Yes
Lens
Lens type 3.7 mm pinholel lens
Field of View H: 76º
Lens mount Board mounted
Day & Night Auto ICR Switch
Audio (NOT included)
Audio input RCA jack connector
Audio output RCA jack connector
Audio communication Two-way, full duplex
Audio compression G.711 (live and recording)
Local Storage
Memory card slot Supports up to 128 GB micro SD card (An SD card of Class 10 or higher is recommended for HD recording)
Recording Continuous recording, Motion/schedule recording
Software Control
Unit configuration Via web browser or PC surveillance software
Network
Protocols HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless IEEE 802.11b/g/n
PoE IEEE 802.3af compliant
Mechanical
Dimensions 130*70*50mm
Weight TBA
Environmental
Operating temperature Camera -20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature -20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity 10% to 80% relative humidity (non condensing)
Ordering Information
IP PIR Covert Camera 2643-51
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

4MP IP Covert PIR Camera

Model:2643-51
Sensor: 1/3 Type CMOS Sensor
Pixel: 2592*1520@25fps
Lens: 3.7mm pinhole lens
Day/Night: Auto ICR Switch
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Covert design

The users can have advances for their investigation by setting up a 2643-51 IP Covert PIR camera. Hidden inside the PIR housing make the camera undetectable.

HD Image Detail

The 2643-51 Hidden PIR camera provides image detailed in 4MP HD resolution with its 1/3 inch CMOS sensor.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage will be recorded into the MacroSD card inside the camera. Users don't need to take off memory card to retrieve the footage. They can access the live and playback remotely over the network connection.

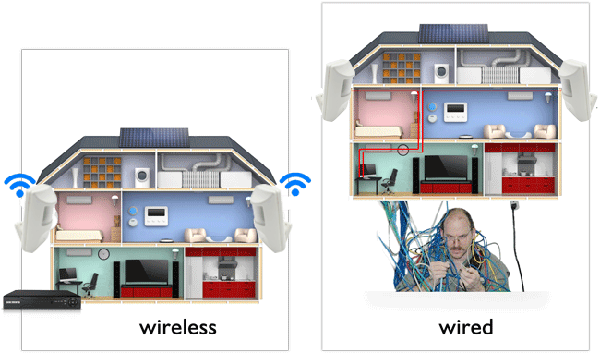

Simple setup

Users only need single cable to carry the power and network to the camera. The power will be separated from the network cable with POE function. You also can connect 2643-51 to your WiFi network. This camera support both WiFi and wire connection.


Onvif Profile S
2643-51 Covert PIR camera is onvif profile-S compatible. It works with most of 3rd party VMS including Avigilon, Milestone, Digifort, Geovsion. It can even trigger motion recording on Dahua and Hikvision NVRs.
