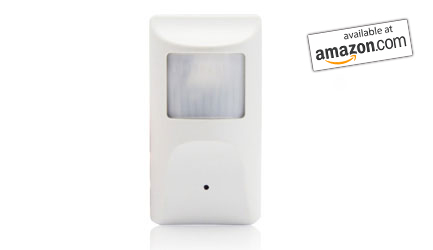

WIFI PIR Sensor Hidden Camera

High definition image detail

Users can zoom in the 2643-62 camera manually to get the best view of the interested area. Allocate all 1.3 megapixel to a specific area can make the image extremely clear.

All-in-one camera system

Users can choose either deploying camera standalone or add the camera to the existed surveillance system. The footage can be recorded in the TF card inside the camera. Users don't need to take off memory card to retrieve the footage, They can access the camera remotely over the network connection.

Night vision

The 2643-62 camera is able to see the external infrared at night with built-in IR cut filter and photocells control.

Efficient recording

Users can enable the motion detection to trigger footage recording when people walk in. They only need to review the motion footage to locate the person of interests. Pre-record capability makes sure the detail will not be missing.

Simple setup

Users can connect the 2643-62 camera to the network with WIFI. It eliminates the requirement to wire back to a router.

Power
Input voltage	+5 - 12 VDC
Power consumption	4.5 W (max)
Video
Sensor type	1/3inch Type CMOS Sensor
Sensor pixels	1280*960
Sensitivity	1.0 lx (IR off)0 lx (IR on)
Main-stream Resolution	1280x960@25fps; 1280x720@25fps
Sub-steam Resolution	4CIF@25fps
Video compression	H.264, H.264+
DWDR	ON/OFF
3D DNR	Yes
Night vision
IR cut filter	Yes
Lens
Lens type	3.7 mm pinholel lens
Field of View	H: 76º
Lens mount	Board mounted
Day & Night	Auto
Audio (NOT included)
Audio input	RCA jack connector
Audio output	RCA jack connector
Audio communication	Two-way, full duplex
Audio compression	G.711 (live and recording)
Local Storage
Memory card slot	Supports up to 128 GB micro SD card(An SD card of Class 10 or higher is recommended for HD recording)
Recording	Continuous recording, Motion/schedule recording
Software Control
Unit configuration	Via web browser or PC surveillance software
Network
Protocols	HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x
Ethernet	N/A
Wireless	IEEE 802.11b/g/n
PoE	N/A
Mechanical
Dimensions	105*80.5mm
Weight	TBA
Environmental
Operating temperature Camera	-20 ºC to +55 ºC (-4 ºF to +131 ºF)
Storage temperature	-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity	10% to 80% relative humidity (noncondensing)
Ordering Information
WIFI PIR Sensor Hidden Camera	2643-62
