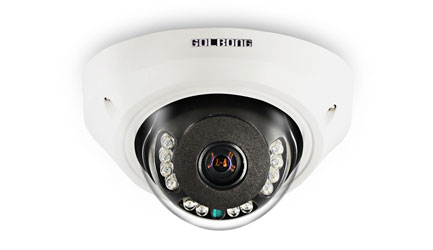

2MP Micro Dome Camera
Model:2221-36Pixel: 1920*1080 @ 30fps
Lens: 2.8mm
Day/Night: 12 LEDs
![](images/pdtshow8.jpg)
![](images/pdtshow9.jpg)
-
Overview
-
Specifications
-
Document
-
Reviews
-
Question & Answer
Power | |
Input voltage | +12 VDC or Power over Ethernet |
Power consumption | 6 W (max) |
Video | |
Sensor type | 1/2.8 Type SONY Exmor CMOS Sensor |
Sensor pixels | 1920x1080 |
Sensitivity | 0.2 lx (IR off) 0 lx (IR on) |
Main-stream Resolution | 1920x1080@25fps; 1280*720@25fps |
Sub-steam Resolution | 4CIF@25fps; CIF@25fps |
Video compression | H.264 MP (Main Profile) |
DWDR | On/Off |
3D DNR | Yes |
Night vision | |
Distance | 10 m |
LED | 12 LED high efficiency array, 850 nm |
Lens | |
Lens type | 3.6 mm MP lens, Fixed Iris F1.4 |
Field of View | H: 75º |
Lens mount | Board mounted |
Day & Night | Auto ICR Switch (IR correction filter) |
Connection | |
Alarm input (optional) | 1 alarm in |
Alarm out (optional) | 1 alarm out |
Audio (optional) | |
Audio input | RCA jack connector |
Audio output | RCA jack connector |
Audio communication | Two-way, full duplex |
Audio compression | G.711 (live and recording) |
Software Control | |
Unit configuration | Via web browser or PC surveillance software |
Network | |
Protocols | HTTP, TCP/IP,ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x |
Ethernet | 10/100 Base-T, auto-sensing, half/full duplex, RJ45 |
Wireless | N/A |
PoE | IEEE 802.3af compliant |
Mechanical | |
Dimensions | Diameter: 98 mm Height: 63mm |
Weight | TBA |
Environmental | |
Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
Humidity | 10% to 80% relative humidity (non condensing) |
Ordering Information | |
IR Macro Dome 3.6mm lens | 2221-36 |
