0 (0) | General | |
| Maximum Number of Cameras | Unlimited (Please Refer to System Requirements Below) |
| Support OS | Windows 8, 7, Vista, XPWindows Server 2012, 2008, 2003, 2000 |
| LiveView (Local Display) | |
| Max. Channel | 36-Channel (With dual monitor) |
| Layout | Multi Layout display: 1x1, 2x2, 1+5, 1+7, 3x3, 1+12, 4x4, 5x5, 6*6, Single Layout display, Full screen display, Sequential display |
| Stream Application | Stream Selection |
| Playback | |
| Max. Channel | 9 Channel |
| Layout | Multi Layout display: 1x1, 2x2, 3x3, Single Layout display, Full screen display |
| Playback Mode | Server Storage |
| Playback Control | Play, Rewind, Pause, Stop, Next / Previous Video Start, Speed Control |
| Search Mode | Date & Time, Timeline |
| Video | |
| Video Format | H.264 AVC, H.265 |
| Video Resolution | Up to 5 Megapixel |
| Video Enhancement | Brightness, Hue, Contrast, Saturation |
| Audio | |
| Audio Format | G.711 |
| Audio Capability | Two Way |
| Audio Control | Mute & Sound Play |
| Record | |
| Recording Stream | Single |
| Recording Mode | Continuous (Schedule) * |
| Recording Setting | Recycle |
| Recording File Format | H.264 or H.265 |
| eMap | |
| Source | Import Picture * |
| Marked | Add, Remove, Indicator LiveView * |
| PTZ | |
| PTZ Control | Panel Control |
| PTZ Operation | Direction Control, Zoom, Focus, Iris, Preset, Tour, Speed |
| Export | |
| Snapshot | BMP |
| Export file | AVI |
| System | |
| User Management | Authentication: Basic Account |
| Date & Time | Sync PC |
| Language | English |
| Camera Integration | |

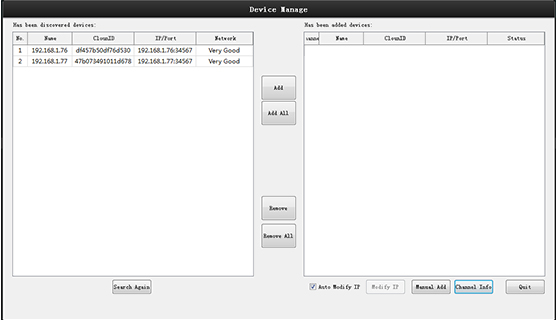

| Camera Insert | Manual, Search, Auto discovery |
| Basic Setting | Date & Time, video standard, DST |
| Connection Setting | TCP/IP, DAS, Cloud, Email, FTP, DDNS, PPPoE, RTSP |
| Video Setting | Video Stream, Compression, Resolution, FPS, Video Quality |
| Audio Setting | On/Off |
| Event | Motion detection, Abnormal |
| Local Storage | Utilities, recording schedule |
