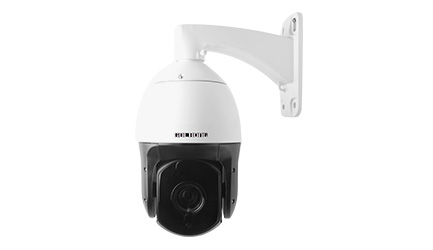

2MP PoE IP PTZ Camera with 30X Zoom
Model:2818-30Pixel: 1920x1080@25 fps
Lens: 4.3~129mm Auto Zoom
Day/Night: 3 group laser IR array
-
Overview
-
Specifications
-
Document
-
Reviews
-
Question & Answer
High definition image detail
The user can see through the objects 150 meters far away with high power zoom capability. Allocate all 2 megapixel to a specific area can make the image extremely clear.
Preset and sequence
The user can set 2818-30 camera automatic moving around the preset positions to guard different surveillance points on the field.
Moving object capturing
2818-30 camera is capable of capturing moving objects and deliver less blurry image which is value for entrance or exit.
Night vision
The 2818-30 camera can capture clear image at night with its built-in high power infrared LEDs.
Waterproof
The users can deploy the 2818-30 camera in the harsh environment outside perimeter with heavy wind, rain, and snow.
Simple and professional setup
The users can easily test the camera on the field with its hang-up conjunction box. POE function allows single cable to carry the power and network to the camera. The power will be separated from the network cable.
| Camera Day/Night | |
| Imager | 1/2.8 Type SONY Exmor CMOS Sensor |
| Effective Picture El- ements | Effective: Approximately 2.3 megapixels Delivered: Approximately 2 megapixels |
| Lens | 30x Zoom (4.3~129mm) |
| Sensitivity | IR OFF IR ON 0.1Lux 0Lux |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override |
| Digital Noise Reduction | 3DNR |
| WDR enhancement | On/Off |
| Gain Control | Auto/Manual/Max. |
| Synchronization | internal crystal |
| Digital Zoom | N/A |
| Signal-to-Noise Ratio (SNR) | >50 dB |
| White Balance | Auto/On/Off |
| Night vision | |
| Distance | 300 m |
| LED | 3 group laser IR array, 850 nm |
| Mechanical | |
| Pan Range | 360° cont. |
| Tilt Angle | 1° above horizon |
| Variable Speed | 0.01°/s-300°/s |
| Pre-position Speed | 360°/s |
| Preset Accuracy | ± 0.01° typ. |
| Electrical | |
| Input Voltage | DC24V/PoE+ (optional) |
| Power Consumption, typical | 25W |
| Software Control | |
| Camera Setup | Via Internet Explorer Web browser version 7.0 or later, Golbong Operation software |
| Supported Languages | Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI |
| Software Update | Firmware upload |
| Network | |
| Standards | H.265/H.264 |
| Streaming | Two (2) independent streams: Main streams & Sub Stream |
| Data Rate | 512 kbps to 8 Mbps |
| Overall IP Delay | 250 ms |
| Resolution | Resolution (Horizontal x Vertical, PAL/NTSC) |
| • 1080p | 1920x1080@25 fps; 1280x720@25 fps |
| • 4CIF/D1 | 704 x 576 @ 25 fps |
| Ethernet | 10-Base T/100 Base-TX, auto-sensing, half/full duplex, RJ45 |
| Protocols | HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x |
| Miscellaneous | |
| Operation | OSD menu or hot key |
| Pre-positions | 255 |
| Preset Tours | 4 (fie), consisting of up to 8 preset each, consecutively |
| Auto Pan | Yes |
| Guard Action | Preset/tour/two point scan |
| User Connections | |
| Power Camera | DC24V or DC48V, 1.5A (optional) |
| Video and Control | RJ-45 100 Base-TX Ethernet |
| Environmental | |
| Design Rating | IP66 |
| Operating Temp. | –35°C to 55°C |
| Storage Temp. | –40°C to 60°C |
| Dimensions | |
| Weight | 3.2kg |
| Bubble Size | 153.1 mm diameter |
| Construction Material | |
| Housing | Cast aluminum |
| Bubble | Polycarbonate (rugged) |
| Standard Color | White |
| Ordering Information | |
| PoE IP PTZ camera, 30X Optical zoom | 2818-30 |
-
