Home / Product / Platform Server / Center Management Server / 512CH IP Devices Center Management Server

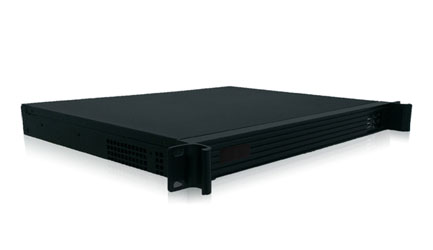

512CH IP Devices Center Management Server

512CH IP Devices Center Management Server

Model:5802
Channel: 512CH
Standard: H.264
Video forward: 32CH
 0 (0)
Overview
Specification
Rated Voltage and Power
Rated Voltage 180V~240V,47Hz~63Hz
Power 220W
Video
Video Standard PAL or NTSC
Compression H.264/H.265
Max. IP Connecting 512 channels
Max. video re-generating 32 channels @ 2M bit rate
Decoding Outputs N/A (works with decoder)
Audio
Inputs 1 line in , mono RCA,1 Vpp, 10 kohm
Output 1 line out, ono RCA, 1 Vpp, 10 kohm
Compression G.711
Sampling rate 8 kHz per channel
Monitors
VGA/HDMI Devices Management
Live Resolution SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080 PAL: 704x576, NTSC: 704x480
Connections
Ethernet 10/100/1000 Base-T, auto-sensing, half/full duplex, RJ45
USB Two USB 2.0 ports front four USB 2.0 ports rear
Network
Supported devices Golbong IP Cameras, NVR, DVR
Mechanical
Dimensions (W x D x H) (excluding cabling) 420(L) x 430(H) x 45(W)mm
Weight 8.0kg
Environmental
Operating temperature +5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
Center Server 512-channel 5802
Documents
Reviews
Share your thoughts with others
Write A Review
0 Reviews & Ratings
(0)
(0)
(0)
(0)
(0)
SORT BY:
SORT BY:
Question & Answer
QUESTION & ANSWER
Tell us your questions. We’ll reply ASAP.
ASK A QUESTION
SORT BY:
SORT BY:

512CH IP Devices Center Management Server

Model:5802
Channel: 512CH
Standard: H.264
Video forward: 32CH
  • Overview
  • Specifications
  • Document
  • Reviews
  • Question & Answer

Auto Register Connecting

Golbong IP cameras, NVRs, and DVRs on multi-sites can register to this server without static IP address.

Search Right Video

The operator can find the right video recording on the IP cameras or recorders from this server in center.

Video forwarding

The server can forwarding 780mbps video streams which is 780-channel in D1 resolution to the network for remote accessing.

Monitor devices' status

The operator can read the status of each IP devices on multi-sites, receiving alarm message from motion detection, alarm I/O.

Manage IP devices

The operator can configure each IP camera, NVR, or DVR on the site from the monitoring center.

Authorized Users

The operator can create umlimited accounts and assign the specific cameras for each users to access remotely.

Mobile access

The users can access the video feed fowarding by the server on smart phone.
