0 (0) | Ports | |
| Number of Ports | 8 ports (4 ports PoE) |
| Data Rate | 10/100/1000BaseTX |
| Performance | |
| MAC Address | 4 K |
| Buffer Memory | 1.625 M bits |
| Transmission Method | Store and Forward |
| Transmission Media | 10BaseT Cat. 5 UTP/STP 100BaseTX Cat. 5 UTP/STP 1000BaseTX Cat. 5 UTP/STP |
| Filtering/Forwarding Rates | 11.90Mpps |
| Mechanical Characteristics | |
| LED Indicators | Per Port: Link/Act |
| PoE Act/Status | |
| Power | |
| Electrical Characteristics | |
| Input | 100 ~ 240 V/AC, 50 ~ 60 Hz |
| Standard | 802.3at/af compliant, 60W PoE |
| PoE Ports | 4 Ports |
| Max. Power Consumption | 180 W |
| Connectors | Shielded RJ45, EIA 568A and 568B |
| Network cables | Shielded category 5 (or higher) |
| Wiring | Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all four pairs for Gigabit Ethernet Power over pairs 1/2 (+), 3/6 (-), 4/5 (+) and 7/8 (-) |
| Dimensions (H x W x D) | 280*179*45mm |
| Weight | 2.24 kg |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20°C ~ 90°C (-4°F ~ 194°F) |
| Humidity | 10 to 90% RH (non-condensing) |
| Standards and Regulatory | |
| Standards | IEEE-802.3at PoE+ / PSE IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3x Flow Control |
| Regulatory | CE, FCC Class A |
| Ordering Information | |

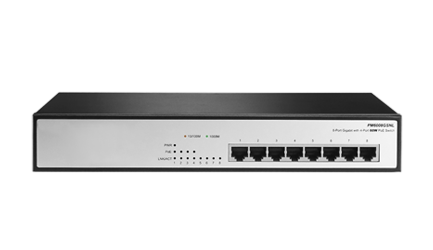

| 60W High Power POE Switch | 5440-26 |
