0 (0) | Power | |
| Input voltage | +12 VDC |
| Power consumption | 6 W (max) |
| Video | |
| Sensor type | 1/3 inch Type Low lux CMOS Sensor |
| Sensor pixels | 1280x720 |
| Sensitivity | 0.1 lx (IR off)0 lx (IR on) |
| Resolution | 1280x960 |
| Video Output | 1Vp-p Composite Output(75Ω/BNC） |
| Day & Night | photocells control |
| Shutter | Auto (1/50(1/60)s to 1/10,000s) |
| AGC | Auto |
| Night vision | |
| Distance | <5 m |
| LED | 15 LED high efficiency array, 850 nm |
| Lens | |
| Lens type | 2.8mm |
| Field of View | H: 102° |
| Lens mount | Board mounted |
| Day & Night | Auto ICR Switch |
| Mechanical | |
| Dimensions | Diameter:100 mmLenght: 75 mm |
| Weight | TBA |
| Environmental | |
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Humidity | 10% to 80% relative humidity (noncondensing) |
| Ordering Information | |

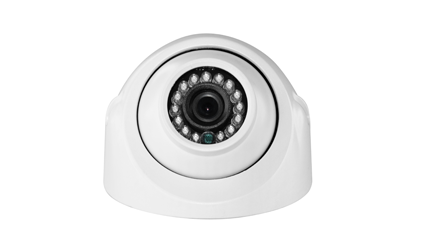

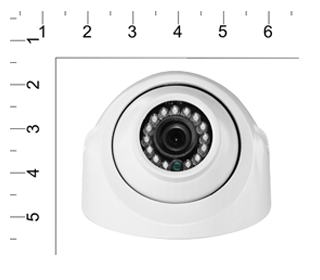

| 720p Coaxial Analog HD Vehicle Camera | 4081-51 |
