0 (0) | Power | |
| Input voltage | +12 VDC |
| Power consumption | 6.0 W (max) |
| Video | |
| Sensor type | 1/3 inch Type CMOS Sensor |
| Sensor pixels | 1280*960 |
| Sensitivity | 0.5 lx (IR off)0 lx (IR on) |
| Main-stream Resolution | 1280*720@22fps |
| Sub-steam Resolution | 4CIF@25fps |
| Video compression | H.264 MP (Main Profile) |
| DWDR | ON/OFF |
| 3D DNR | Yes |
| Night vision | |
| Distance | 20 m |
| LED | 24 LED high efficiency array, 850 nm |
| Lens | |
| Lens type | 3.6 mm pinholel lens |
| Field of View | H: 75º |
| Lens mount | Board mounted |
| Day & Night | Auto |
| Connection | |
| Analog video out | N/A |
| Alarm input (optional) | 1 alarm in |
| Alarm out (optional) | N/A |
| Audio (optional) | |
| Audio input | RCA jack connector |
| Audio output | RCA jack connector |
| Audio communication | Two-way, full duplex |
| Audio compression | G.711 (live and recording) |
| Local Storage | |
| Memory card slot | Supports up to 128 GB micro SD card(An SD card of Class 8 or higher isrecommended for HD recording) |
| Recording | Continuous recording, Motion/schedule recording |
| Software Control | |
| Unit configuration | Via web browser or PC surveillance software |
| Network | |
| Protocols | HTTP, TCP/IP,ARP, RTSP, RTP, UDP,SMTP, FTP, DHCP, DNS, DDNS, PPPOE,UPNP, NTP, 802.1x |
| Ethernet | N/A |
| Wireless | IEEE 802.11b/g/n |
| PoE | N/A |
| Mechanical | |
| Dimensions | 105*80.5mm |
| Weight | TBA |
| Environmental | |
| Operating temperature Camera | -20 ºC to +55 ºC (-4 ºF to +131 ºF) |
| Storage temperature | -20 ºC to +70 ºC (-4 ºF to +158 ºF) |
| Humidity | 10% to 80% relative humidity (noncondensing) |
| Ordering Information | |

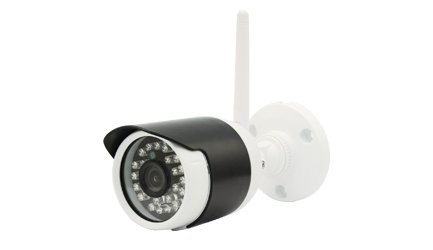

| WIFI Outdoor Bullet Camera | 2633-20 |
