0 (0) | Camera 20x Day/Night | |
| Imager | 1/2.8 in. Low Lux CMOS |
| Effective Picture El- ements | Approximately 2 megapixels |
| Lens | 20x Zoom (4.7~94mm) |
| Sensitivity | IR OFF |
| 0.2Lux | |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override |
| Gain Control | Auto/Manual/Max. |
| Synchronization | internal crystal |
| Signal-to-Noise Ratio (SNR) | >48 dB |
| White Balance | Auto/On/Off |
| Mechanical | |
| Pan Range | 360° cont. |
| Tilt Angle | 1° above horizon |
| Variable Speed | 0.01°/s-300°/s |
| Pre-position Speed | 360°/s |
| Preset Accuracy | ± 0.01° typ. |
| Electrical | |
| Input Voltage | DC12V 3A |
| Power Consumption, typical | 25W |
| Smart Infrared System | |
| Distance | Automatically match with zoom operation, 120meters Max. |
| LED | 8 high power array, 850 nm |
| Miscellaneous | |
| Operation | Hot-key (Preset) |
| Pre-positions | 80 |
| Preset Tours | 5 (five), consisting of up to 16 scenes each, consecutively |
| Auto Pan | Yes |
| Guard Action | Preset/tour |
| User Connections | |
| Power Camera | DC12V, 4A |
| Control Data | RS-485 ± |
| Alarm I/O | N/A |
| Environmental | |
| Design Rating | IP66 |
| Operating Temp. | –35°C to 55°C |
| Storage Temp. | –40°C to 60°C |
| Construction | |
| Dimensions | |
| Weight | 3.2kg |
| Bubble Size | 153.1 mm diameter |
| Construction Material | |
| Housing | Cast aluminum |
| Bubble | Polycarbonate (rugged) |
| Standard Color | White |
| Ordering Information | |

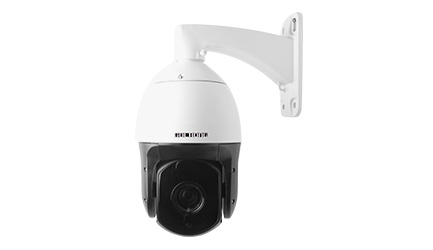

| Analog HD PTZ Camera 20X optical zoom; | 2806-30 |
