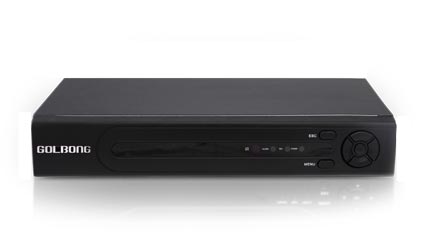

8CH PoE NVR

Complete setup in minutes, not an hour

The users can setup the ip system with quick set module which will assign the IP address and make the connection to each cameras automatically.

Built in PoE switch

The PoE NVR can send the network and power to each camera with single cable. No need extra power source at cameras end.

Next Level Codec

The PoE NVR can deliver 30% ~ 50% extra recording capability with its H.265 codec.

All in one system

The operator can use PoE NVR to record the live stream from camera, decode video feed for real time monitor, search footage for review.

Motion recording and playback

The PoE NVR can start record the video stream when the motion is detected by the camera. The operator doesn't need to playback all the footage, but only interests section.

Onvif complete open

The users can integrate PoE NVR with 3rd-party ip camera which support Onvif protocols. The motion record can accomplish as long as the camera has followed the message notification instruction.

Rated Voltage and Power
Rated Voltage and Power	110–240 VAC; 50/60 Hz; 1.5A
External power adapterDC output	48VDC
Power the cameras	802.3af compliant Power-over-Ethernet3030-47: 8 port 100W3031-52: 4 port 55W
Video
Video Standard	PAL or NTSC
Compression	H.265/H.264
Outputs	HDMI
Audio
Inputs	N/A
Output	N/A
Monitors
Monitors	Live, playback, menus
Live Resolution	SVGA: 800x600, 1024x768, 1280x1024, 1360x768, 1440x900, 1920x1080PAL: 704x576, NTSC: 704x480
Display Modes
Screen	Full, full sequence, quad, multi-screen (live and playback), event call-up (live)
Frame rate PAL/NTSC	25/30 IPS per channel (real time)
Multi-screen mode 8 channels	1, 2x2, 3x3, 4x4
Digital Zoom	Yes
Display languages	Arabic, Portuguese, English, French, Deutscher, Russian, HUNGARIAN, ITALIAN, Japanese, POLAND, Roman, Chinese, Spanish, Turkish, SUOMI
Alarm Handling
Inputs	Golbong IP camera
Outputs	N/A
Events	Motion detect, Video Blind, Video Loss, IPC Alarm
Remote notification	Via Control Center software, email, Push message
Malfunction relay	Disk space low, IP conflict, Disk failures
Connections
Ethernet	10/100 Base-T, auto-sensing, half/fullduplex, RJ45
USB	Two USB 2.0 ports
Network
Protocols	HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP
IP cameras	3030-47: 8 IP at 4mp, 16 IP at 960p3031-52: 4 IP at 4mp
Supported IPdevices	Golbong IP Cameras, Onvif 2.0 compliance IPC
Storage
Internal HDD	1 unit
Redundancy	N/A
Exporting
USB	Flash memory
Network	Golbong Software
Security
Password protection	Multi-level
Recording
Overwrite modes	Continuous, overwrite
Playback
Decoding Capacity	4MP Mode @ 120 fps (4-CH)
Playback function	Fast forward/reverse, frame forward /reverse,freeze
Digital Zoom	yes
Search mode	Date/time, Event (motion, input)
Mechanical
Dimensions (W x D x H)(excluding cabling)	105.4(L) x 63.5(H) x 30.5(W)mm
Weight	TBA
Environmental
Operating temperature	+5 °C to +45 °C (+41 °F to +113 °F)
Storage temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Relative humidity	Operating: <93 % non-condensing Storage: <95 % non-condensing
Ordering Information
8CH PoE NVR	3030-47
4CH PoE NVR	3031-52
